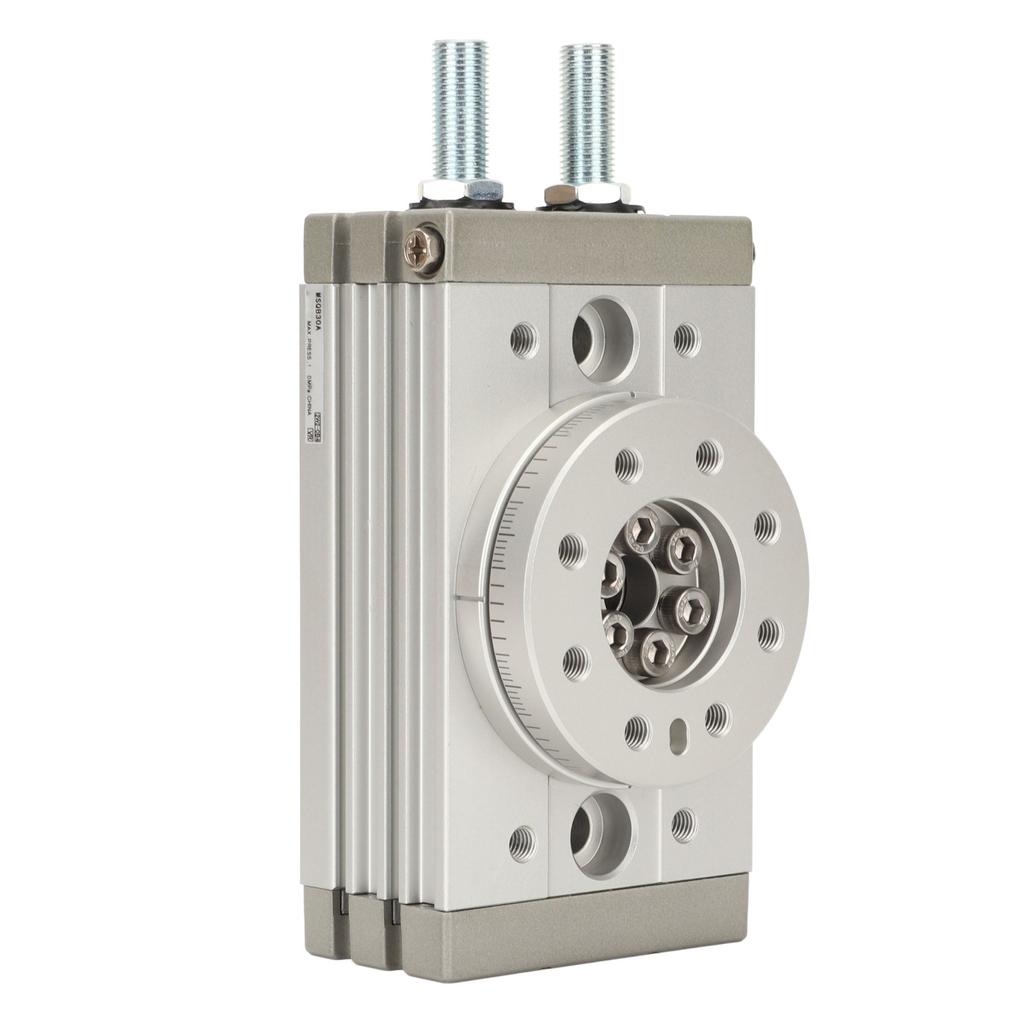

Rotary Pneumatic Air Cylinder 0 to 190 Degree Adjustable Aluminum Alloy High Strength Waterproof Rotate Cylinder

Feature: 1. [Angle Adjustable] The rotary cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate. 2. [Design Feature] Built in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating air supply from both sides of the piston, one or two way output force. 3. [Aluminum Alloy Made] The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment, and has the ability to prevent dust and water. 4. [Large Output Force] The air cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure. 5. [Wide Application] Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries. Specification: Item Type: Rotary Pneumatic Air Cylinder Material: Aluminum Alloy Model MSQB 10A

MSQB 20A

MSQB 30A

Inlet Thread Hole

M5x0.8

M5x0.8

G1 8

Allowable Motion Energy (J)

0.007

0.025

0.048

Stable Swing Time Adjustment Range in Action (S 90 degrees )

0.2 1

0.2 1

0.2 1

Use Fluid

Air

Maximum Service Pressure

1MPa

Minimum Service Pressure

0.1MPa

Ambient Temperature and Operating Fluid Temperature

0 60 celsius (Non Condensing)

Angle Adjustment Range

0 190 degrees

Maximum Swing Angle

190 degrees

Cylinder Inner Diameter

D15

D18

D21

Port Size End Face Piping

M5x0.8

M5x0.8

G1 8 Side Piping

M5x0.8 . Package List: 1 x Rotary Pneumatic Air Cylinder
