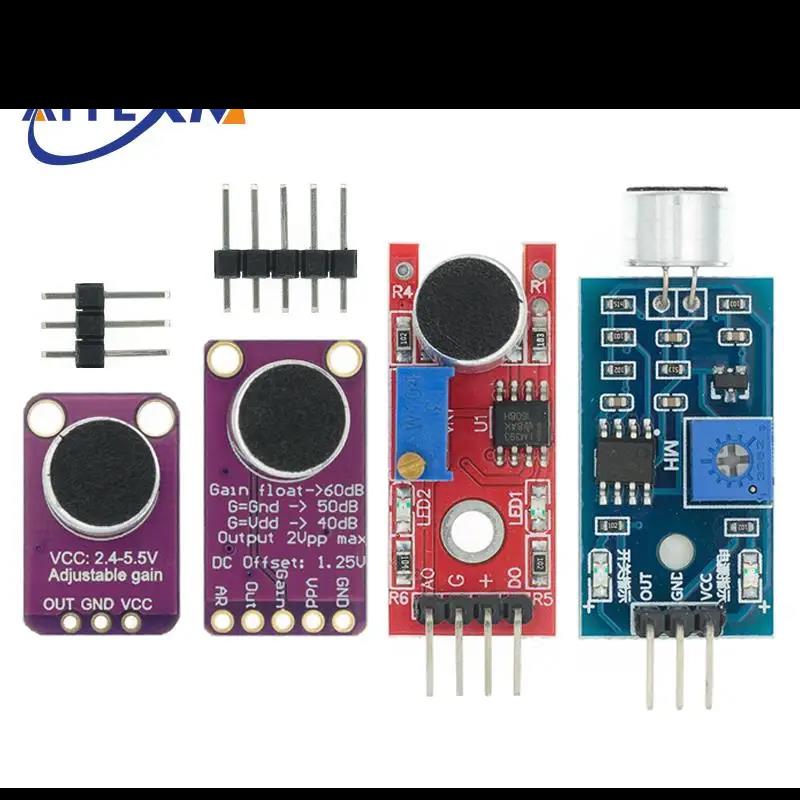

1-10pcs Sound Sensor Module Sound Control Sensor MAX4466 MAX9814 Detection Whistle Switch Microphone Amplifier For Arduino 7

modname=ckeditor

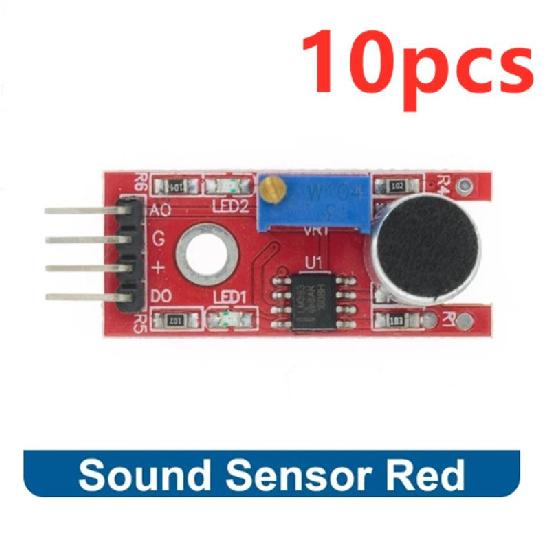

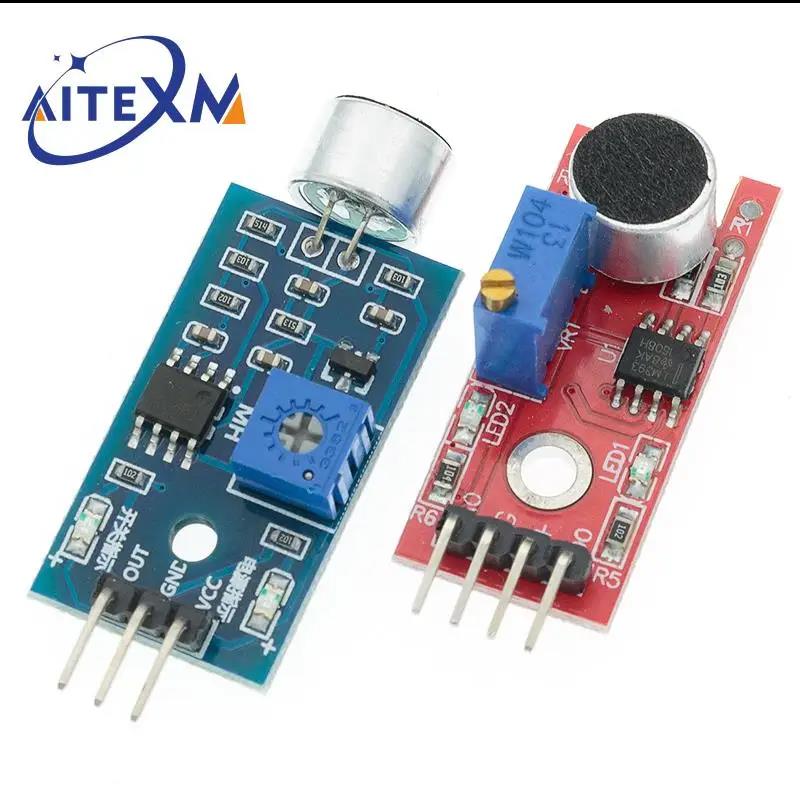

Sound module Red:

100% Brand New.

Size:32mm*17mm*8mm(length*width*height)

Main chip:LM393, Electret condenser microphone

Working voltage: DC 4-6V

Signal output indication

Single channel signal output

The output effective signal is low level

When there is sound, outputs low level and the signal light

Can be used for Acoustic control light , give sound and light alarm working with Photosensitive sensor ,and sound control, sound detect

Circuit board output switch quantity

Note: The Maximum induction distance is 0.5

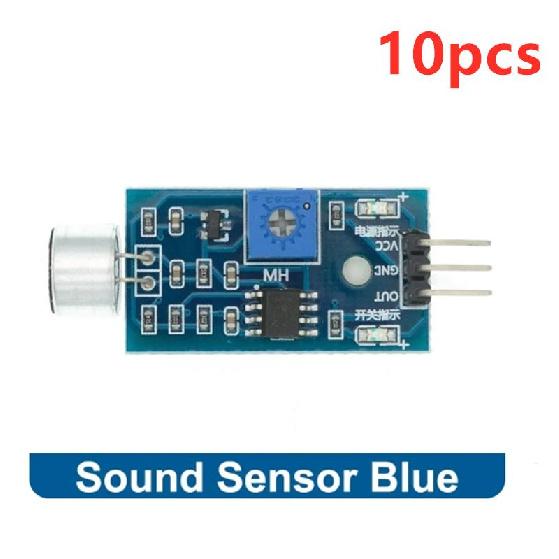

Sound module Blue:

100% Brand new and high qualitySignal output indicationSingle channel signal output The output effective signal is low level When there is sound,output low level and the signal lights Can be used for Acoustic control light; give sound and light alarm working with Photosensitive sensor Specifications: Size: approx.32mm*17mm*15mm(length*width*height) Main Chip: LM393, Electret condenser microphone Working Voltage: DC 4-6V Color: Blue Net Weight: 3g Note: The Maximum induction distance is 0.5M

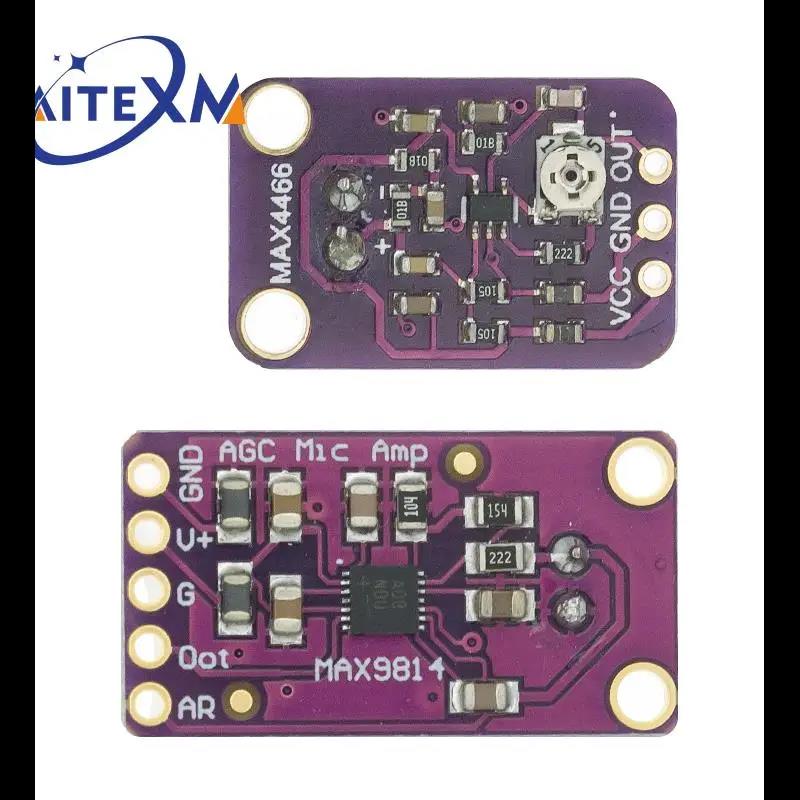

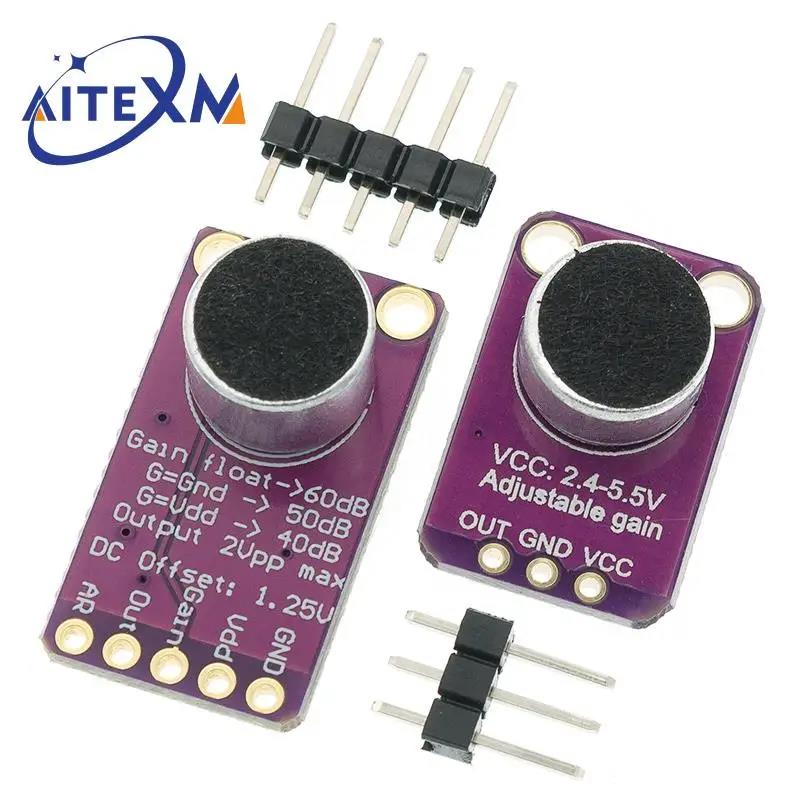

MAX9814:

Specifications:

- Supply Voltage: 2.7v-5.5v @ 3mA current

- Output: 2Vpp on 1.25V bias

- Frequency Response: 20Hz - 20KHz

- Programmable Attack and Release Ratio

- Automatic gain, selectable max from 40dB, 50dB or 60dB

- Low Input-Referred Noise Density of 30nV/

- Low THD: 0.04% (typ)

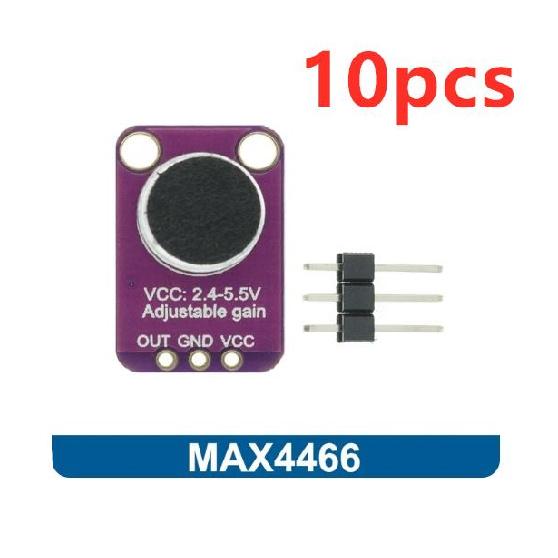

MAX4466:

Description: Add an ear to your project with this well-designed electret microphone amplifier. This fully assembled and tested board comes with a 20-20KHz electret microphone soldered on. For the amplification, we use the Maxim MAX4466, an op-amp specifically designed for this delicate task! The amplifier has excellent power supply noise rejection, so this amplifier sounds really good and isn't nearly as noisy or scratchy as other mic amp breakouts we've tried!This breakout is best used for projects such as voice changers, audio recordingmpling, and audio-reactive projects that use FFT. On the back, we include a small trimmer pot to adjust the gain. You can set the gain from 25x to 125x. That's down to be about 200mVpp (for normal speaking volume about 6" away) which is good for attaching to something that expects 'line level' input without clipping, or up to about 1Vpp, ideal for reading from a microcontroller ADC. The output is rail-to-rail so if the sounds gets loud, the output can go up to 5Vpp! Using it is simple: Connect GND to ground, VCC to 2.4-5VDC.For the best performance, use the "quietest" supply available (on an for Arduino, this would be the 3.3V supply). The audio waveform will come out of the OUT pin. The output will have a DC bias of VCC/2 so when its perfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled). If the audio equipment you're using requires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device. If you're connecting to an audio amplifier that has differential inputs or includes decoupling capacitors, the 100uF cap is not required.The output pin is not designed to drive speakers or anything but the smallest in-ear headphones- you'll need an audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers. If you're connecting to a microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUT pin directly to the microcontroller ADC pin.For audio-reactive projects, we suggest using an FFT driver library which can take the audio input and 'translate' it into frequencies.
