SIHAO Metal Lathe Mini 750W 220V 8.7" Swing Over Bed 29.5" Centers

Product: SIHAO Metal Lathe Mini

Characteristics: Power: 750W Volt: 220V 50Hz Phase: Single Phase Swing Over Bed: 8.7" / 220 mm Distance Between Centers: 29.5" / 750 mm 3-Jaw Chuck Diameter: 4.9" / 125 mm Hole Through Spindle: 1.5" / 38 mm Spindle Accuracy: 0.01 mm Variable Speed(Rpm): 50-2250±10% Range of Imperial Threads: 8-44 T.P.I Range of Longitudinal Feed: 0.5-2.5 mm Gear Material: Metal Item Weight: 186 lbs / 84 kg Item Dimension: 40.2 × 12.3 × 13.6 in / 102.2 × 31.3 × 34.7 cm

Package Content: 1 x Metal Lathe 1 x Center Rest 1 x Dead Center MT2 1 x Oil Gun 3 x Jaw 6 x Metal Gear 1 x Instruction Manual 2 x Screwdriver 1 x Accessory Kit 1 x Chuck Wrench 3 x Wrench 3 x Chuck Jaw

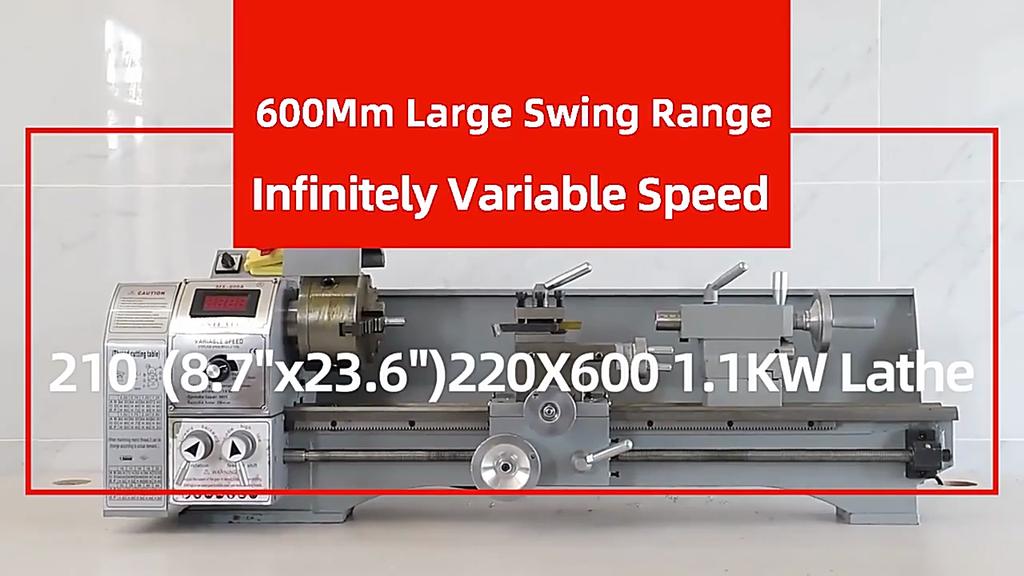

Power: 1100W Motor Type: Brushless Volt: 220V 50Hz Phase: Single Phase Swing Over Bed: 8.7" / 220 mm Distance Between Centers: 23.6" / 600 mm 3-Jaw Chuck Diameter: 4.9" / 125 mm Hole Through Spindle: 1.5" / 38 mm Variable Speed(Rpm): 50-3000±10% Taper of Spindle: MT#5 Taper of Tailstock: MT#2 Spindle Accuracy: 0.01 mm Range of Imperial Threads: 8-44 T.P.I Range of Longitudinal Feed: 0.5 - 2.5 mm Gear Material: Metal Item Weight: 183 lbs / 83 kg Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

Package Content: 1 x Metal Lathe 1 x Tool Rest 5 x Hex Wrench 1 x Dead Center MT2 1 x Oil Gun 3 x Jaw 5 x Gear 1 x Instruction Manual 2 x Screwdriver 1 x Accessory Kit 1 x Chuck Wrench 3 x Wrench 3 x Chuck Jaw

Power of Motor: 550W DC Single Phase Spindle Speed: 0 - 2250 RPM Swing Over Bed: 7.09" / 180 mm Swing Over Cross Slide: 4.3" / 110 mm Chuck Diameter: 3.94" / 100 mm Centers Distance: 13.78" / 350 mm Spindle Bore: 0.83" / 21 mm Spindle Taper: MT3 Tailstock Taper: MT2 Cross Slide Travel: 2.53" / 65 mm Top Slide Travel: 1.36" / 35 mm Spindle Accuracy: 0.0004" / 0.01 mm Inch Thread: 12 - 52 T.P.I Metric Thread: 0.5 - 2.5 mm Net Weight: 102.7 lbs / 46.6 kg Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

Package Content: 1 x Mini Metal Lathe 3 x Chuck Jaws 1 x Lathe Center 1 x Chuck Wrench 2 x Wrench 1 x Oil Can 5 x Hex Wrenches 9 x Plastic Nylon Gears 2 x Handle 4 x Rubber Feet 4 x Screws 1 x Tool Bo

Power: 600W 220V 50Hz Distance Between Centers: 12" / 300 mm Swing Over Bed: 7" / 180 mm Swing Over Cross Slide: 4" / 95 mm Taper of Spindle Bore: MT3 Spindle Bore: 0.8" / 21 mm Range of Spindle Speeds: 50 - 2500 RPM Max. Slide Travel: 2.2" / 55 mm Cross Slide Travel: 3" / 75 mm Tailstock Quill Travel: 2.5" / 60 mm Taper of Tailstock Quill: MT2 Gross Weight: 149.6 lbs / 68 kg Item Dimensions(L x W x H): 27.5 × 11.5 × 13 inches / 70 × 297 × 33 cm

Package Content: 1 x Mini Lathe 1 x Splash Guard 1 x Oil Can 1 x Manual 1 x Chuck Key 8 x Metal Gears 2 x Bolt Drivers 5 x Hex Keys 3 x Chuck Jaw

Swing Over Bed: 8.3 in / 210 mm Swing Over Cross Slide: 15.7in / 400 mm Motor Power: 750W Volt: 220V Phase: Single Phase Spindle Bore: 0.83 in / 21 mm Spindle Taper: MT5 Tail Stock Taper: MT2 Gear Material: Metal Spindle Speed Ranges: Low 0-1250, High 100-2250 RPM Spindle Accuracy: 0.0004-0.0012" / 0.01-0.03 mm Compound Rest Travel: 2-1/8 in / 54 mm Cross Slide Travel: 3 in / 76 mm Tail Sleeve: φ1 in / 25 mm Inch Threads: 8-44 T.P.I Metric Threads: 0.5-3.0 mm Footprint: 31.5 x 10.5 in / 800.1 x 266.7 mm Item Weight: 169.8 lbs / 77 kg Item Dimensions: 31.5 × 11.8 × 13.6 in / 80 × 30 × 34.5 cm

Package Content: 1 x Metal Lathe (Equipped with a 3-jaw Chuck) 1 x Center Rest 1 x Tool Storage Box 1 x Oil Can 3 x Wrench 3 x Allen Key 3 x Jaw 5 x Metal Gear

Motor Power: 750W Voltage: 220V 50Hz Spindle Taper: MT3 Tail Stock Taper: MT2 Range of Spindle Speeds: 50 - 2500 RPM Distance Between Centers: 16" / 400 mm Swing Over Bed: 8" / 210 mm Chuck Diameter: 5" / 125 mm Hole Thru Spindle: 1.5" / φ38 mm Max. Compound Slide Travel: 2" / 55 mm Max. Cross Slide Travel: 3" / 75 mm Net Weight: 158.7 lbs / 72 kg Item Dimensions (L x W x H): 31.5 x 11.5 x 13.5 in / 80 x 29 x 34.3 cm

Package Content: 1 x Mini Lathe 1 x Set of Accessories

Power of Motor: 550W DC Single Phase Variable Speed: 0-2500PRM Swing Over Bed: 7.09"/180mm Center Distance:13.78"/350mm Inch Thread: 12-52 T.P.I Metric Thread: 0.5-2.5 mm Voltage: 220V 50Hz for EU&AU, 110V for US Material: Metal Product Size: 30"x 11.8"x 11.4" Net Weight: 40 kg /88.18 lb

Package Content: 1 x Mini Metal Lathe 1 x Working Light 3 x Chuck Jaw 7 x Turning Tool 1 x A Set of Accessories

Condition: new Plug type: European socket Voltage: 110V/220V

Description: This SIHAO mini metal lathe is designed for various metalworking tasks. It features a powerful motor and variable speed control for precise operation. The lathe includes a chuck, center rest, and a comprehensive set of accessories for immediate use. Its durable metal construction ensures longevity and stability during operation. This model is suitable for both hobbyists and professionals for tasks such as turning, threading, and more. The package includes all necessary components for setup and operation, including multiple gears, wrenches, and an instruction manual.

Condition: new Plug type: European socket Voltage: 110V/220V
