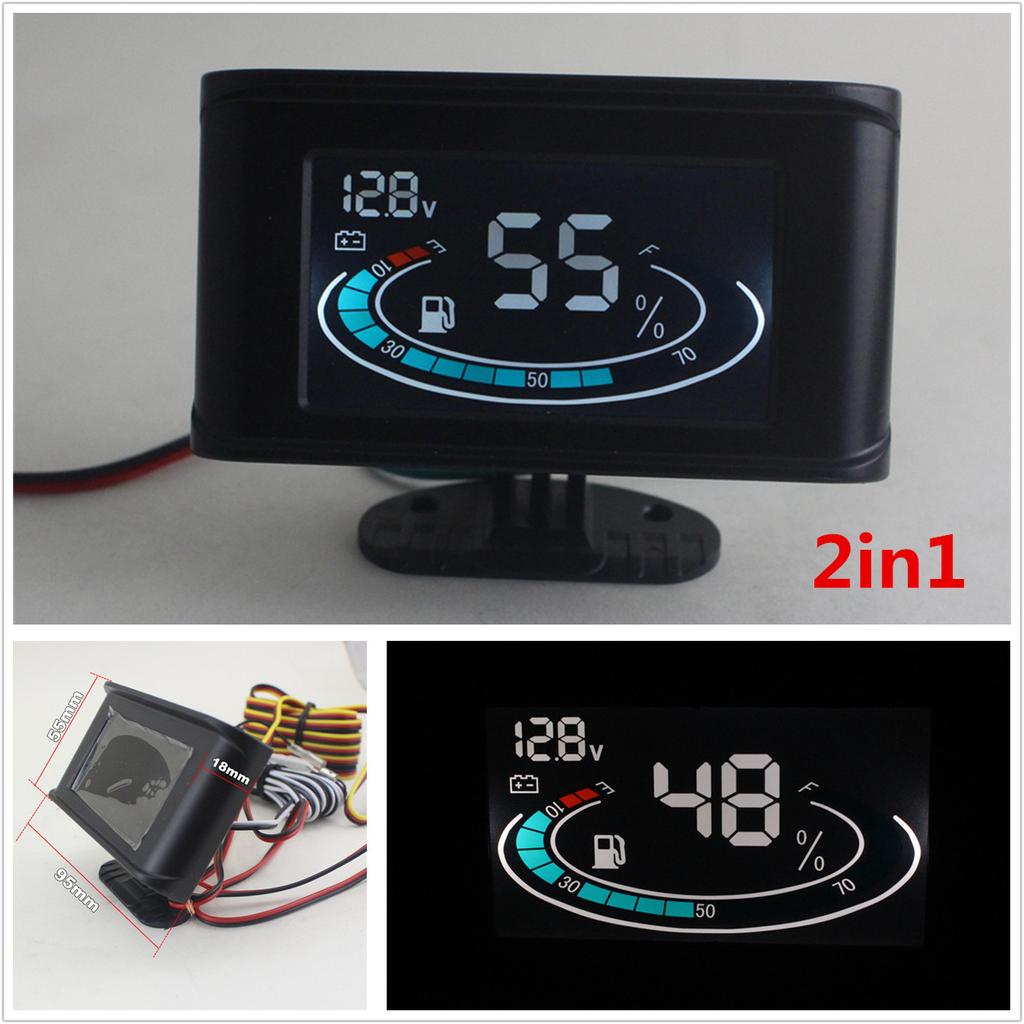

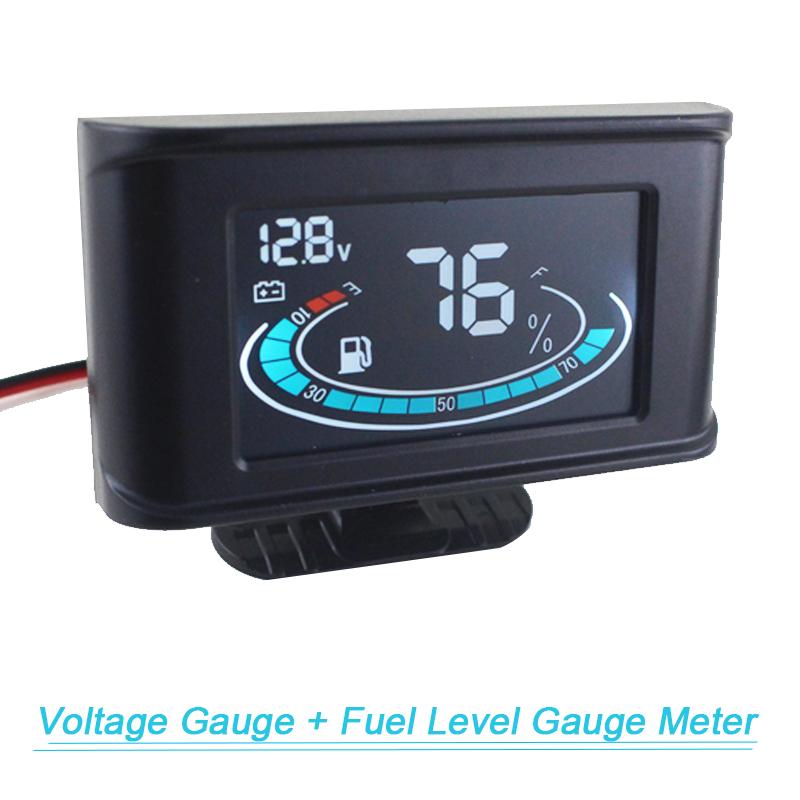

Fuel & Voltage Gauge 001

Introduction The LCD two-in-one meter is a new generation of products to replace the traditional mechanical and direct-induction automotive fuel level gauge, voltmeters . The product uses advanced MCU technology to monitor the fuel level, battery voltage in real time. It has visual display, high accuracy, low power consumption, good stability, strong anti-vibration performance and wide application range (12V/24V). It has the characteristics of convenient installation, long service life and complete protection function. It also has the alarm function. It is the preferred product for measuring the parameters of fuel level, voltmeters. Technical parameters Operating voltage: DC9V-36V, Material:Plastic Shell Product size: 55mm * 95mm * 18mm Measuring range: 0%-100%, DC9V-DC35V. Water temperature alarm: water temperature > 100C (scintillation + buzzer alarm) Fuel level alarm: lower than 10% (scintillation + buzzer alarm) Measurement accuracy: ±1%, ±0.1V, working environment temperature: -40℃~75℃ working environment humidity: 45%-75% RH Application: Suitable for Car,Motorcycle or by your need! Feature: With digital display, intuitive observation Parameter display precision and stability, low power consumption Easy installation, stable performance, anti vibration and anti bump When the alarm that is displayed flashing alarm Package Included（as picture） 1x Gauge 1 Set Cable Note:Please make sure you can Installation,if you need help you can contact your local car repair workshop,Thank you!
