Inline 6 Data Link Adapter Kit Heavy Duty Truck Scanner Diagnostic Tool Replacement for Engine

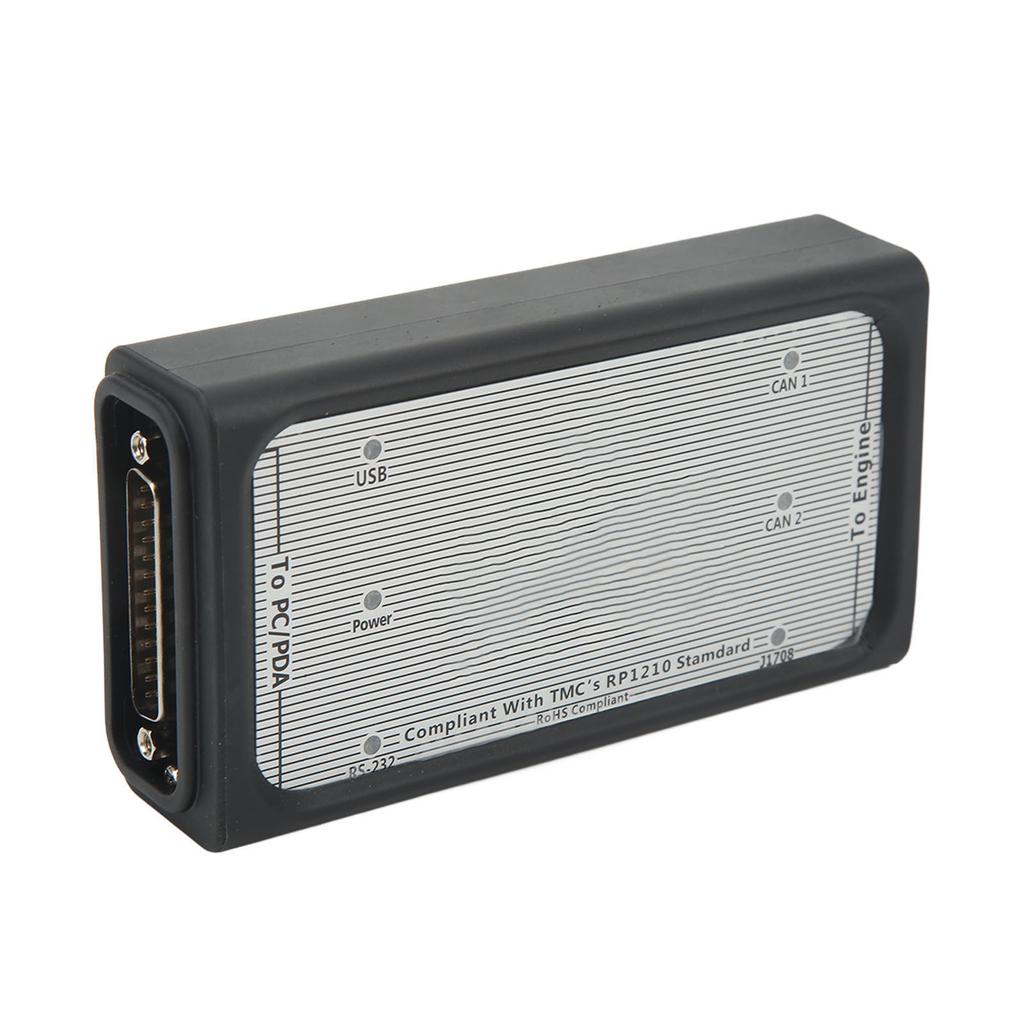

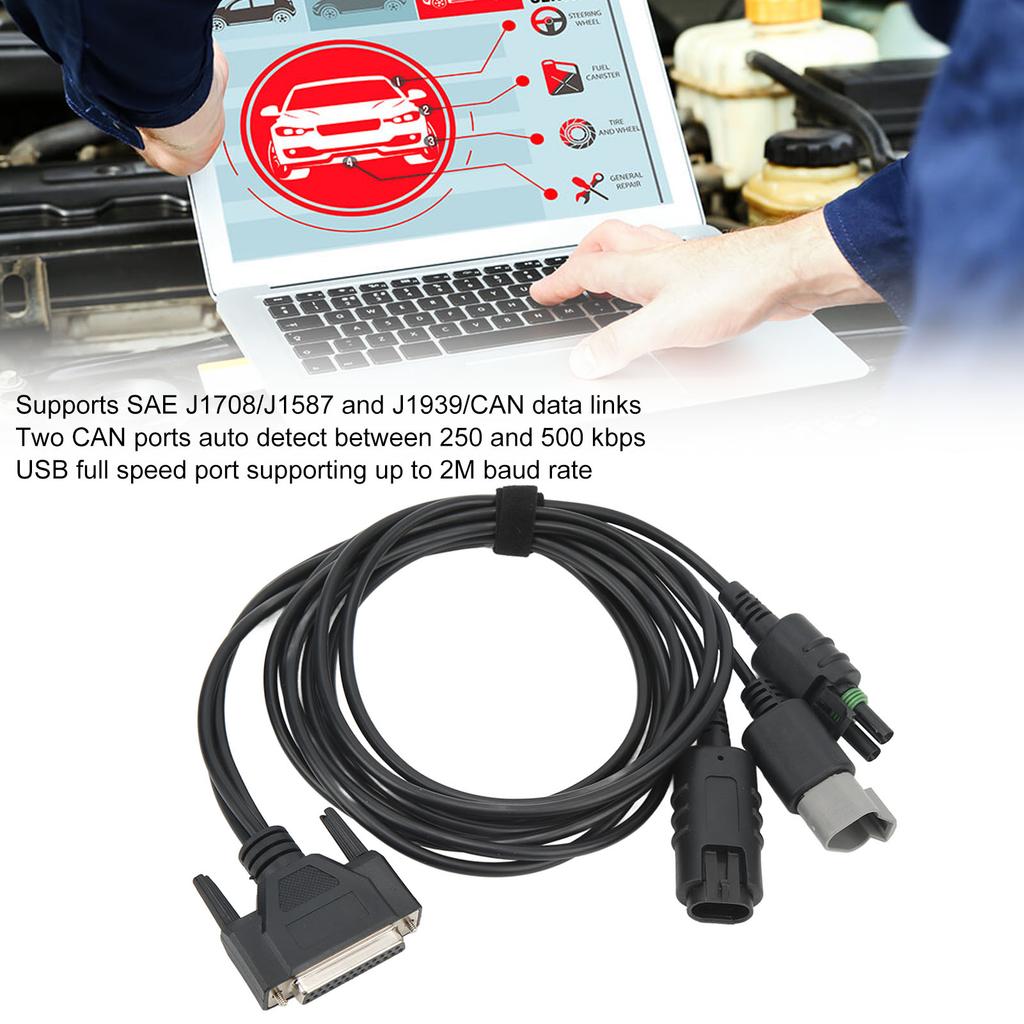

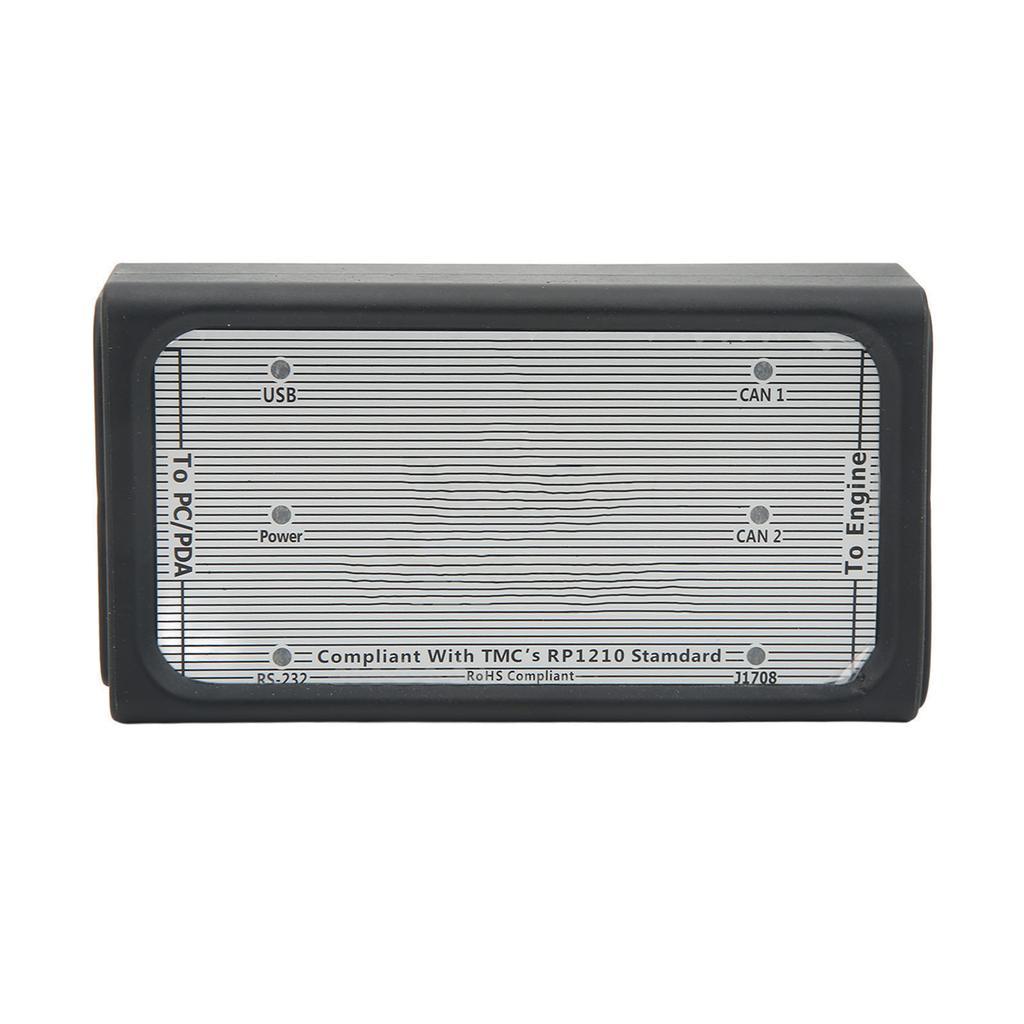

USB Full eed Port: INLINE 6 can communicate with your PC via 9pin serial connector. Communication with your PC is also possible via Serial Bus (USB) via a 4pin standard connector. Data Link: The INLINE 6 adapter connects to the vehicle power supply, SAE J1708CelsiusJ1587 data link, and two CANCelsiusJ1939 data links via a 25pin serial connector. RP1210 Standard: INLINE 6 will work for INSITE, for Power ec and for Calterm III software applications. Can also be used with any other software application that is RP1210 compliant. Item Type: Inline 6 Data Link Adapter Kit Material: ABS, Aluminum Features: 1. Supports SAE J1708CelsiusJ1587 and J1939CelsiusCAN data links 2. Both CAN ports auto detect between 250 and 500 kbps 3. Supports USB full eed port at up to 2M baud rate 4. USB cable includes thumbscrews for secure mounting to INLINE 6 5. Supports 232 PC serial port at up to 115.2k baud rate 6. compliant with TMC s RP1210 standard 7. Small enough to fit in 8. Attractive black powder coated aluminum housing provides ruggedness 9. Derives 8 V to 50 V power from vehicle 10. Controlled by advanced 140 MHz 32bit for processor for maximum eed and performance 11. Includes 6 LEDs to indicate status of power, USB, 232, J1708CelsiusJ1587, and two CAN communication ports 12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols 13. INLINE 6 is certified to meet European CE requirements 14. Rated for -40 degrees C to + 85 degrees C operating temperature 15. INLINE 6 meets rigorous in cab environmental test requirements Note: There are 2 software options in the link, the previous software ve ion is V7.62, and now there is the latest software V8.7. V7.62 software included in the CD.

who choose V8.7 software when placing an order, contact us after receiving the goods, you can provide a link, you need to download it you elf V8.7 software does not have a registered machine, you need to return the ID, copy, and send it to us for activation. INLINE 6 Quick Start Introduction: The INLINE 6 is a highly datalink adapter that can be used on a wide range of applications to communicate with vehicle systems via SAE J1708CelsiusJ1587 and SAE J1939 protocols. Please note that the INLINE 6 is designed to be used with RP1210 compliant software. Minimum System Requirements Microprocessor: For Pentium 500 MHz Memory: 2 GB CD Drive Operating System: For 7, For , For 3 To Install the INLINE 6 Software Driver Insert the INLINE 6 driver CD into your computerums CD ROM drive. Run INLINE6 Driver Setup.exe If for folder opens, select INLINE6 Driver Setup.exe Note that on some systems the autorun settings may be set to have the installation to just begin executing upon CD insertion. IF YOU SEE: For , A message appear stating The software you are installing has not passed for Click Continue Anyway. Click Finish when installation is complete. To Install the INLINE 6 USB Hardware: To install the INLINE 6 USB hardware, the INLINE 6 by plugging in the USB cable provided with the kit to the INLINE 6 and the PC. For : The Found New Hardware wizard should be di layed.On the fi t screen, select Install the software automatically (Recommended). Click to continue. A message may appear This software has not passed Testing......Select Continue Anyway. Click Finish when installation is complete. For Celsius For 7: No action is required. The system tray should di lay a balloon stating Installing Inline 6. NOTE: If there is a previously installed INLINE 6 driver, you may need to remove the older driver before proceeding. After you have connected your INLINE 6 to your computer and the computer recognizes it as a valid device, you may need to update the firmware in the adapter. Please see the section below on using the INLINE 6 Reflash Tool Using Your INLINE 6 To use the INLINE 6, you must select it from within the application
